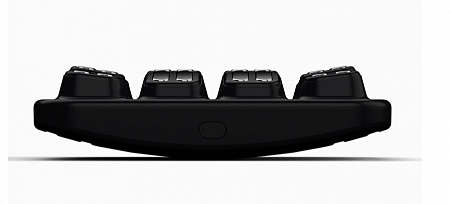

DENAS ORTHO

Modern, compact alternative to the DENAS-Vertebra 2 device.

DENAS-Ortho is intended for dynamic electrical neurostimulation of the reflexogenic zones of the lumbosacral region for therapeutic and prophylactic purposes:

emergency care and course treatment for acute and chronic pain in the lumbosacral region,

prevention of lower back pain with increased static loads,

symptomatic treatment and course treatment of diseases of the female and male genital area,

course treatment of diseases of the vessels of the lower extremities.

Modern design.

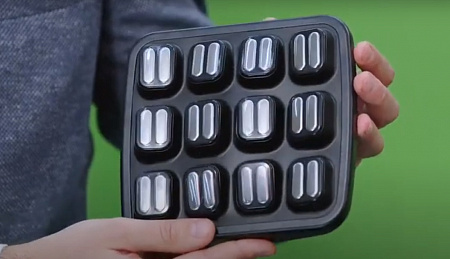

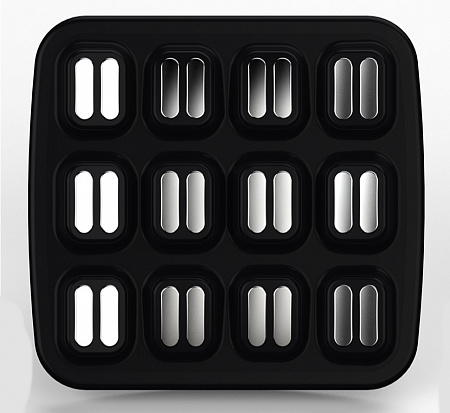

12 built-in electrodes take into anatomical account the curvature of the spine and reproduce the correct anatomical shape.

Machine net weight: 350 +/- 100 g.
Remote: 65 +/- 20g

6 programs:
program A : Acute intense pain in the lumbar region - 30 min : Hz 4; 20; 77; 125; 140; (77 20)
program B : Long aching pain in the lower back - 27 min Hz 4; 60; 77; 125; (77 20)
program C : Muscle strain and discomfort in the lumbar region during prolonged static loads - 21 min, Hz 2,5; 4; 77, (77 20)
program D : Course treatment for chronic gynecological diseases - 24 min. Hz 2,5; 4,9; 20, 60, 77
program E : Course treatment for chronic diseases of the male genital area - 24 min. Hz : 4; 9,4; 20; 60; 77
program F : Course treatment for diseases of the vessels of the lower extremities - 24 min Hz 2,5; 4; 20; 60; 77; (77 20)
Programs differ in a set of frequencies, duration and intensity of exposure.
Each program consists of several phases, changing automatically. Duration each phase of the program is set by the apparatus automatically.

Contraindications for use
Absolute (in these cases, the use of the device is prohibited):
• individual intolerance to electric current;
• the presence of an implanted pacemaker.
Relative (in these cases it is recommended) coordinate the use of the device with the attending
doctor):
• status epilepticus;
• neoplasms of any etiology and localization;
• acute febrile states of unknown etiology;
• thrombosis of veins;
• a state of acute mental, alcoholic or narcotic excitement.
Subject to the terms and conditions of use, indicated in this manual, the side effects of the device have not been identified.

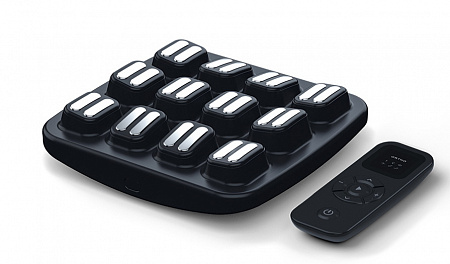

The kit includes:

Device Denas Ortho

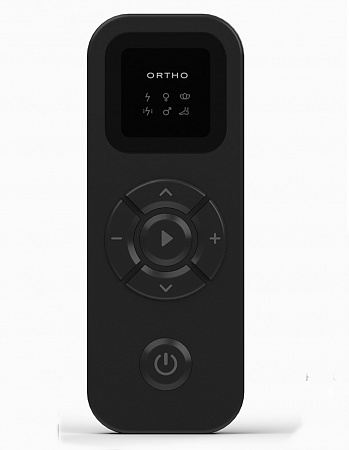

Remote Control

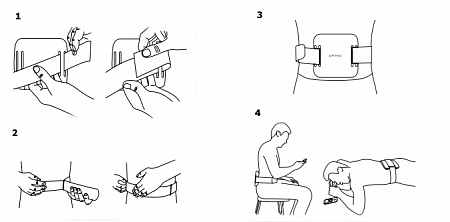

Cuff
Battery type LR6/AA, 1.5 V* 2
Battery type LR03/AAA, 1.5 V* 2
Manual in Russian, ( you can use the online file (PDF) for google translation.)

Marque: Denas
Article: 878
Production: Russia
Poids, gr: 150
